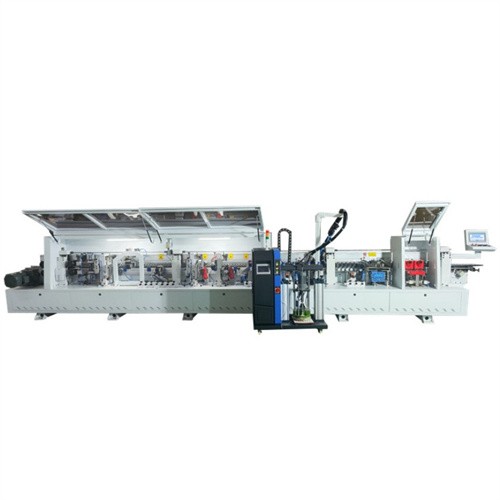

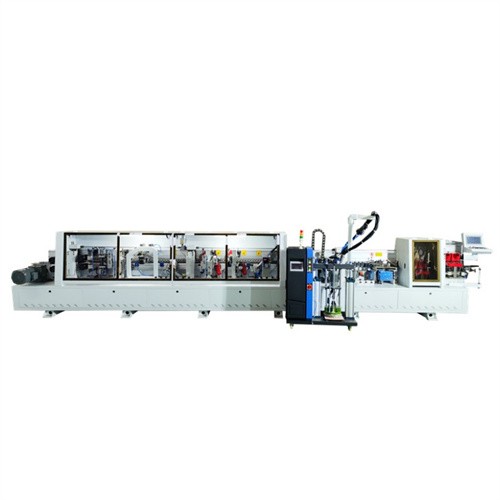

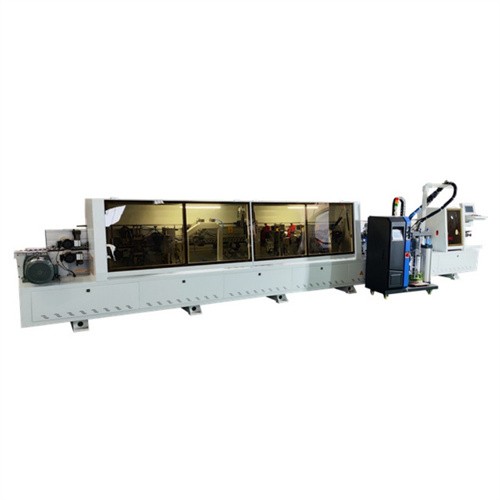

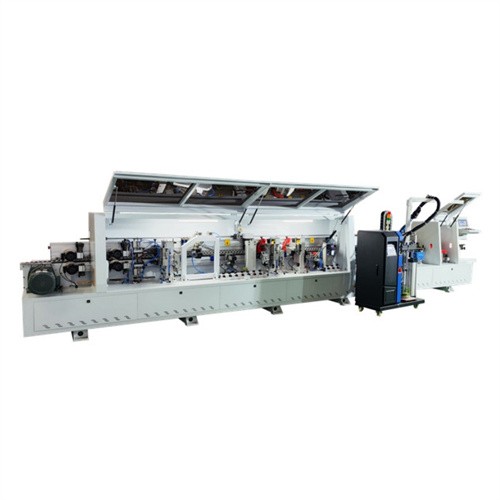

PUR Glue MDF Woodworking Machine Automatic Edge Banding Machine

PUR Glue MDF Woodworking Machine Automatic Edge Banding Machine

Product Item : BH66PUR
Category： Edge banding machine
Name:Automatic edge banding machine
Panel thickness:10-55mm
Min process length:150mm
Min process width:80mm
INQUIRY EMAIL

PUR Glue MDF Woodworking Machine Automatic Edge Banding Machine

Configuration

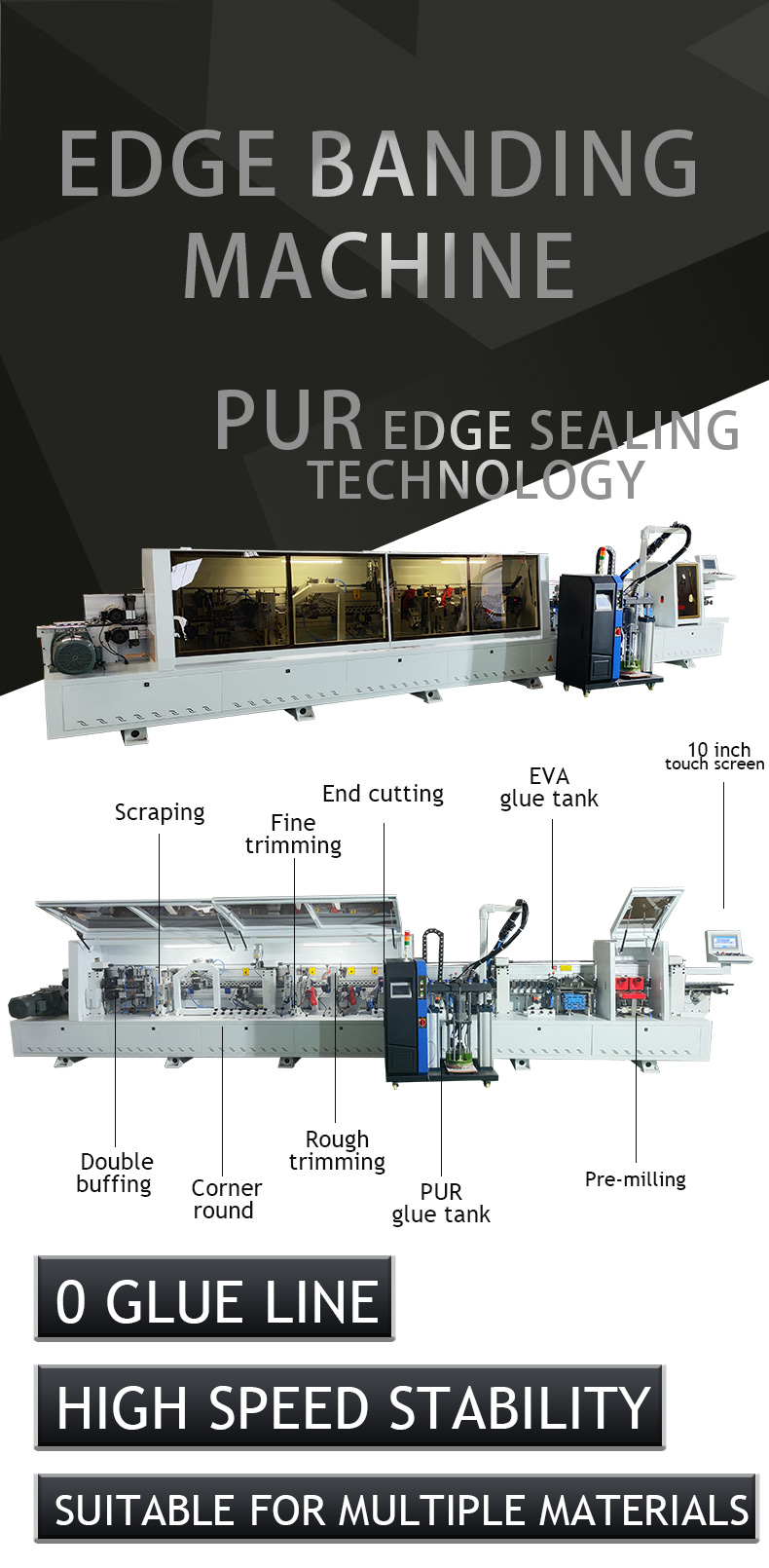

Functional :PUR glueing ,EVA gluing ,pre-milling ,end cutting ,rough trimming ,fine trimming, scraping ,buffing ,double quick melt glue tank,high speed end cutting

Model

Workpiece length

≥150mm

Speed

18-22-24m/min

Workpiece width

≥80MM

Air pressure

0.6mpa-0.8mpa

Smallest workpiece

150-80mm

Power

16.5kw

Workpiece thickness

10-55mm

Size

6680*1000*1650

Band thickness

0.4-3mm

Weight

2.5T

PREVIOUS：Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine NEXT：Woodworking Boring Machine Side Hole Single Row Multi Drilling Machine

PUR Glue MDF Woodworking Machine Automatic Edge Banding Machine

RELATED PRODUCTS

CATEGORIES

LATEST NEWS

CONTACT US

Model
Workpiece length	≥150mm	Speed	18-22-24m/min
Workpiece width	≥80MM	Air pressure	0.6mpa-0.8mpa
Smallest workpiece	150-80mm	Power	16.5kw
Workpiece thickness	10-55mm	Size	668010001650
Band thickness	0.4-3mm	Weight	2.5T
