  • Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine
  • Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine
  • Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine
Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine

Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine

Pre-milling Corner rounding Automatic BH36YJ Woodworking Edge Banding Machine

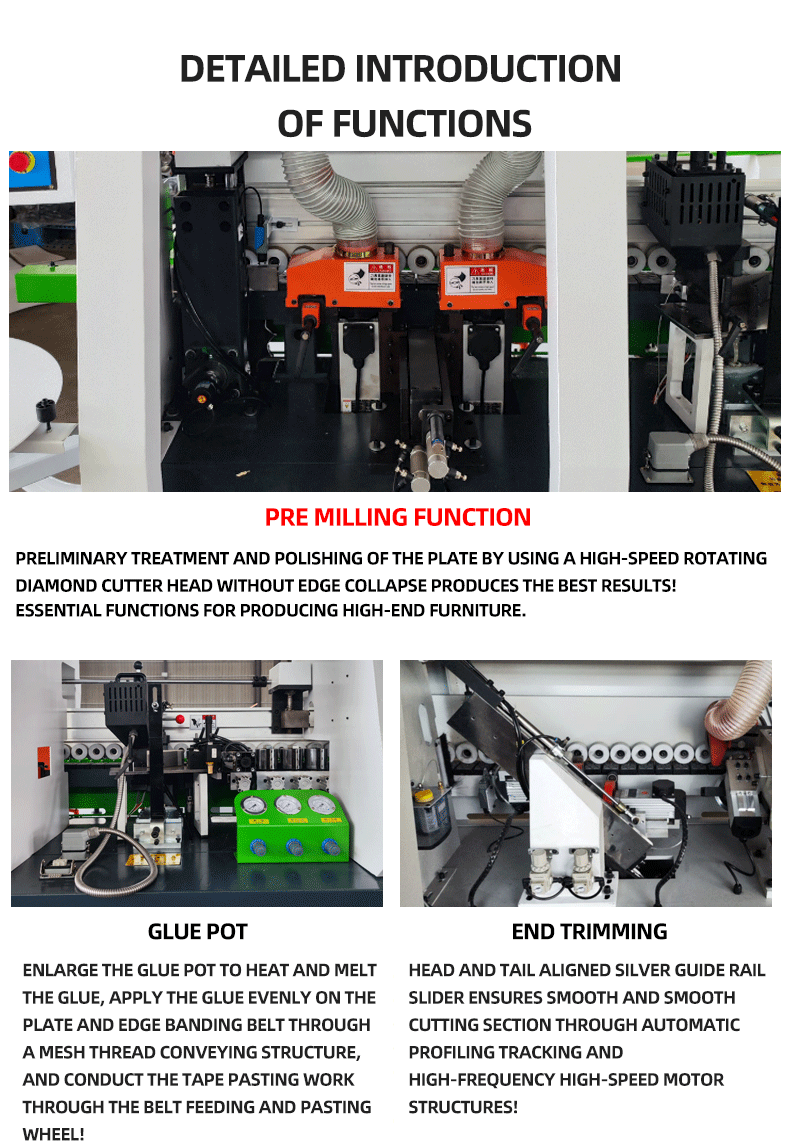

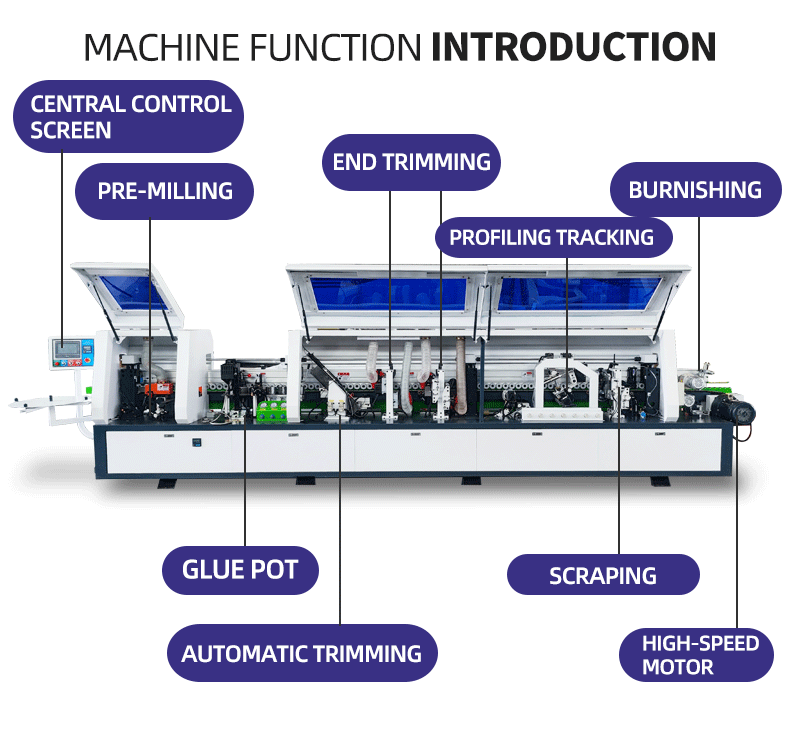

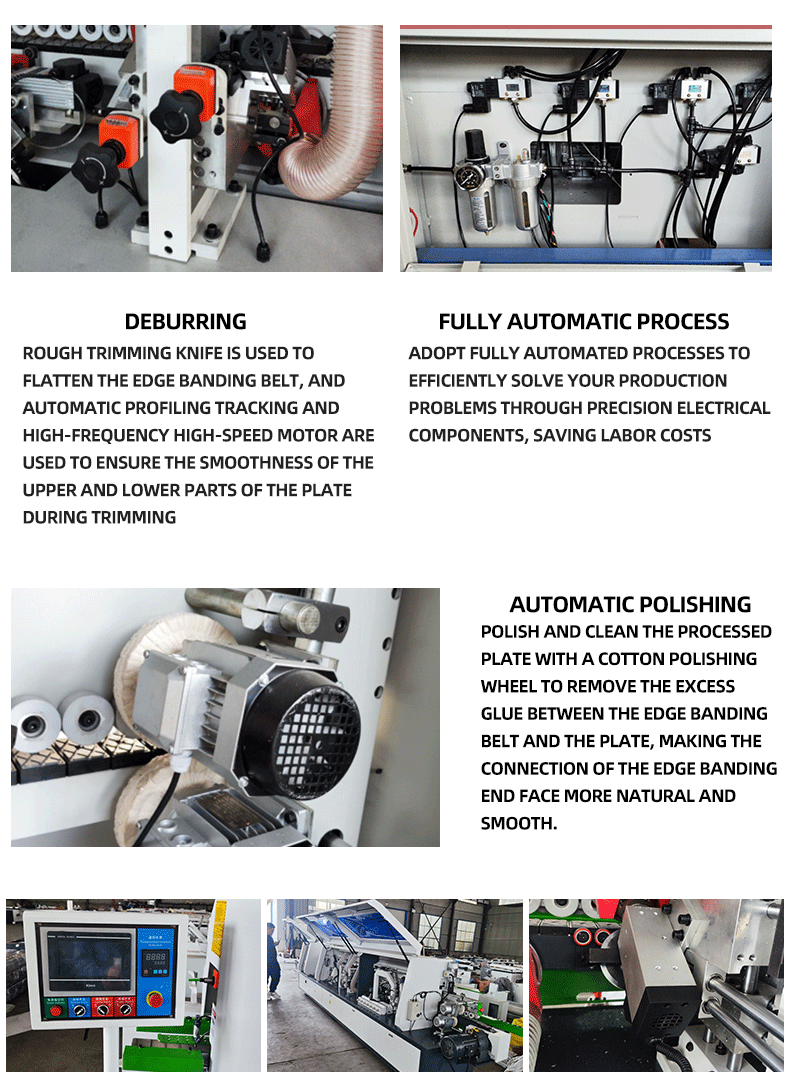

function:preheating, pre-milling,gluing, welting, pressing, tape cutting, end trimming,rough trimming,fine trimming, corner round,edge scraping, polishing

Size

6160*900*1550mm

Air pressure

0.7mpa-0.8mpa

Weight

2.5T

Heating power of glue

1.5kw

Bander width

10-55mm

Preheating power

0.3kw

Bander thickness

0.4-3mm

Transmission power

0.55kw

Min process length

80mm

Conveyor motor power

2.2kw

Min process width

45mm

End cutting motor power

0.55kw*2

Feed speed

18m/20m/22m/min

Rough trimming motor

0.75kw*2

Total power

13.6kw

Fine trimming motor

0.75kw*2
