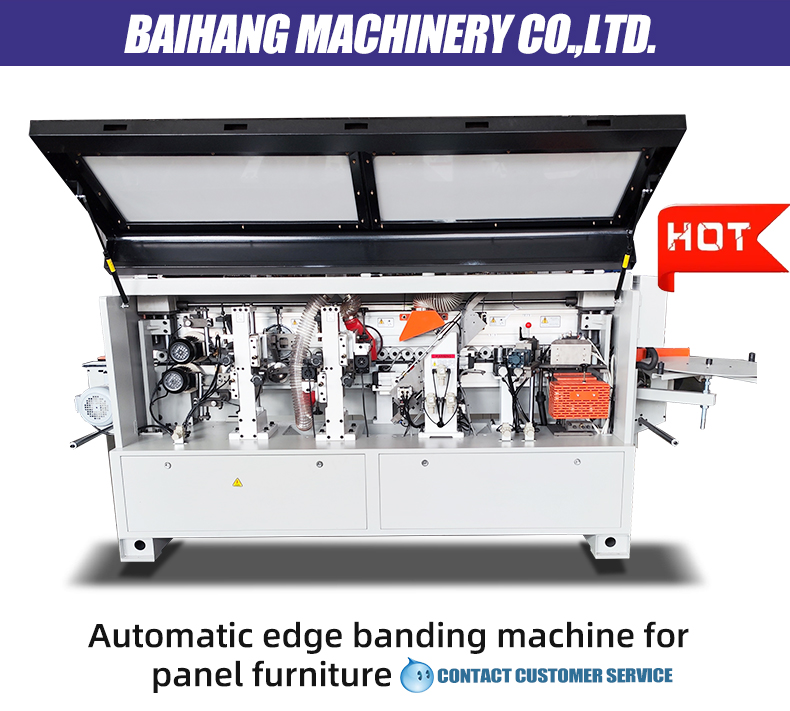

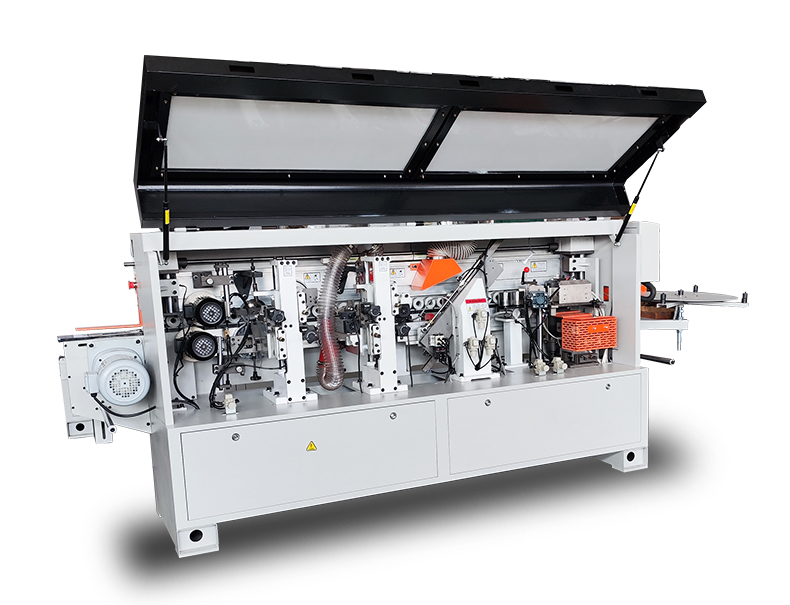

BH46F Automatic Fine Trimming Woodworking Edge Banding Machine

Product Item : BH36F
Category： Edge banding machine
Name:Automatic edge banding machine
Panel thickness:12-60mm
Min process length:80mm
Min process width:45mm
INQUIRY EMAIL

BH46F Automatic Fine Trimming Woodworking Edge Banding Machine

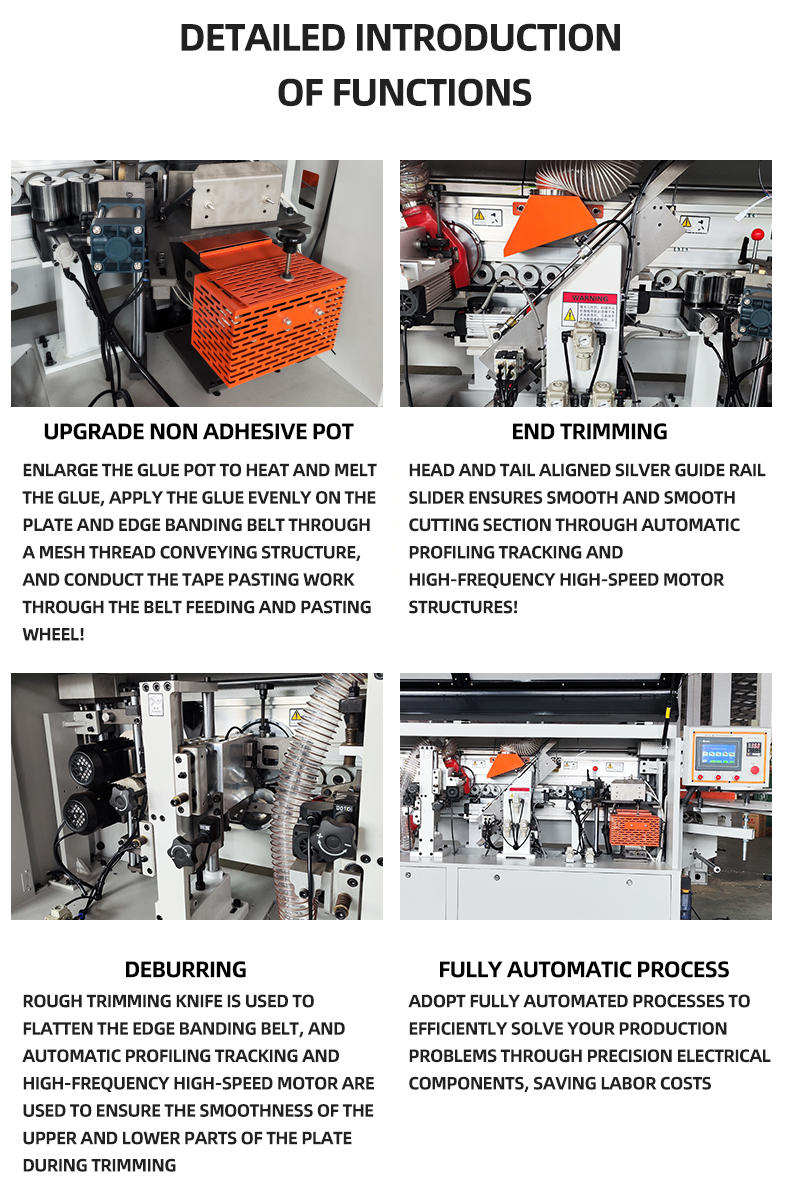

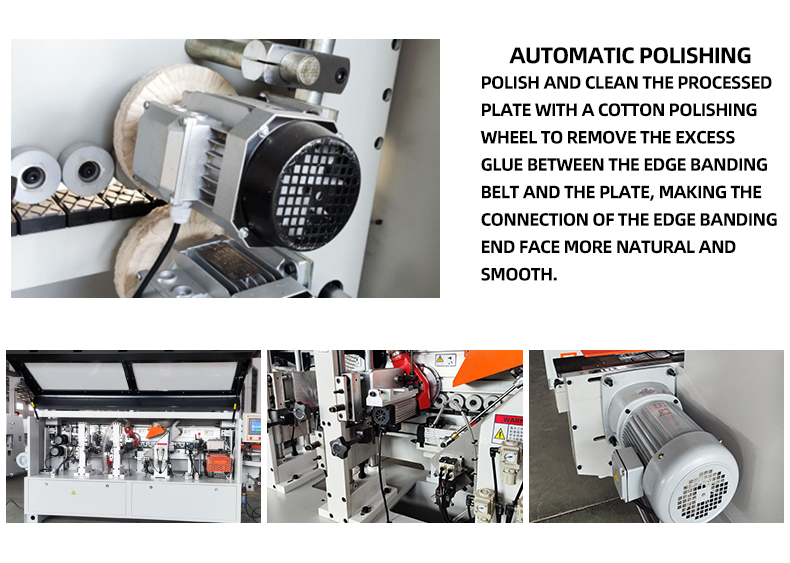

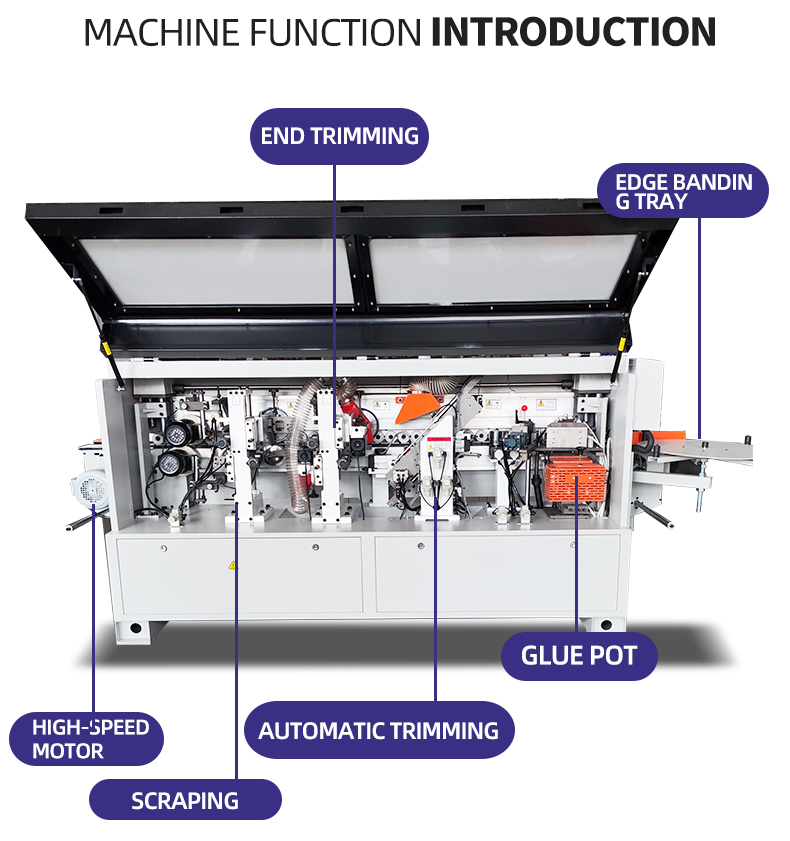

function:preheating, ,gluing, welting, pressing, tape cutting, end trimmingfine trimming, edge scraping, polishing

Size

4600*900*1500mm

Air pressure

0.6mpa-0.8mpa

Weight

1.8T

Heating power of glue

1.8kw

Bander width

12-60mm

Preheating power

0.3kw

Bander thickness

0.4-3mm

Transmission power

0.75kw

Min process length

150mm

Conveyor motor power

2.2kw

Min process width

120mm

End cutting motor power

0.55kw*2

Feed speed

15m/18m/22m/min

Corner round power

0.35kw*2

Fine trimming motor

0.75kw*2

Total power

10.5kw

PREVIOUS：Woodworking Cutting Saw Machine CNC Electric Panel Beam Saw NEXT：Automatic Fine Trimming BH36F Edge Banding Machine

BH46F Automatic Fine Trimming Woodworking Edge Banding Machine

RELATED PRODUCTS

CATEGORIES

LATEST NEWS

CONTACT US

Size	46009001500mm	Air pressure	0.6mpa-0.8mpa
Weight	1.8T	Heating power of glue	1.8kw
Bander width	12-60mm	Preheating power	0.3kw
Bander thickness	0.4-3mm	Transmission power	0.75kw
Min process length	150mm	Conveyor motor power	2.2kw
Min process width	120mm	End cutting motor power	0.55kw*2
Feed speed	15m/18m/22m/min
Corner round power	0.35kw*2	Fine trimming motor	0.75kw*2
Total power	10.5kw
