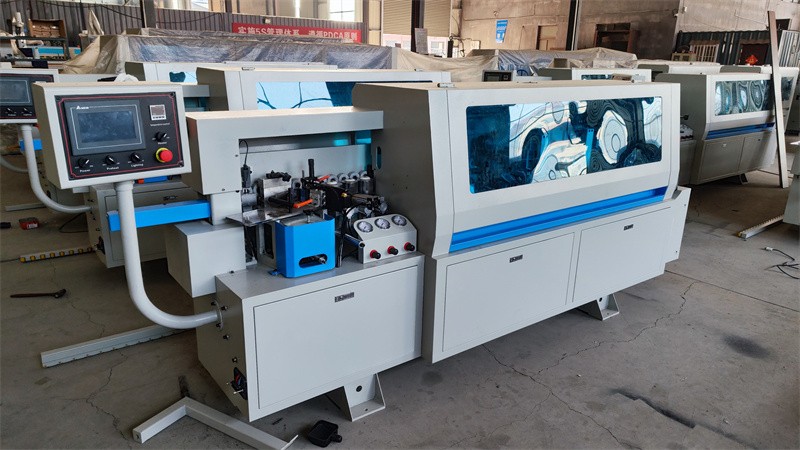

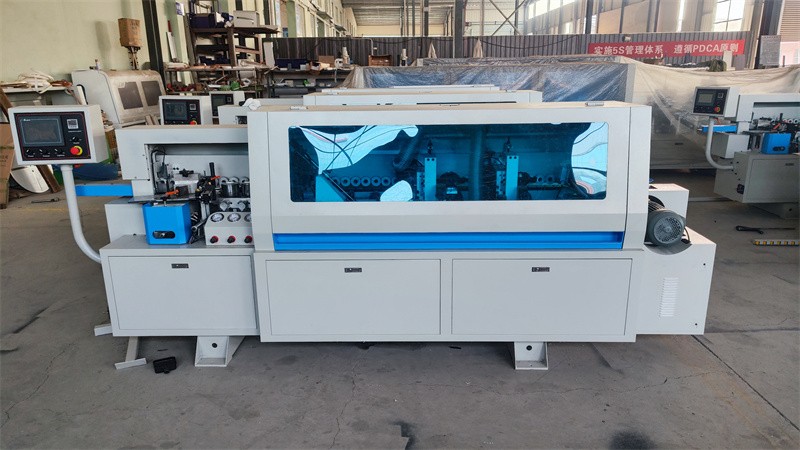

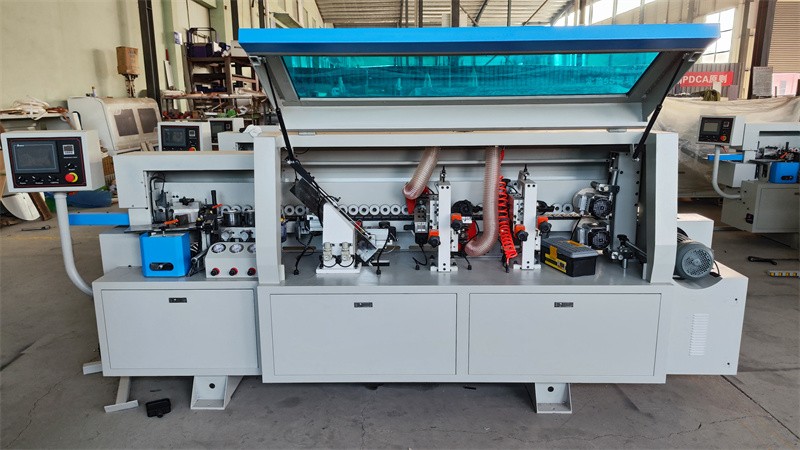

Automatic Fine Trimming BH36F Edge Banding Machine

Size

3500*850*1550mm

Air pressure

0.7mpa-0.8mpa

Weight

1.3T

Heating power of glue

1.5kw

Bander width

12-60mm

Preheating power

0.3kw

Bander thickness

0.4-3mm

Transmission power

0.55kw

Min process length

80mm

Conveyor motor power

2.2kw

Min process width

45mm

End cutting motor power

0.55kw*2

Feed speed

18m

Total power

8.5kw

Fine trimming motor

0.75kw*2
