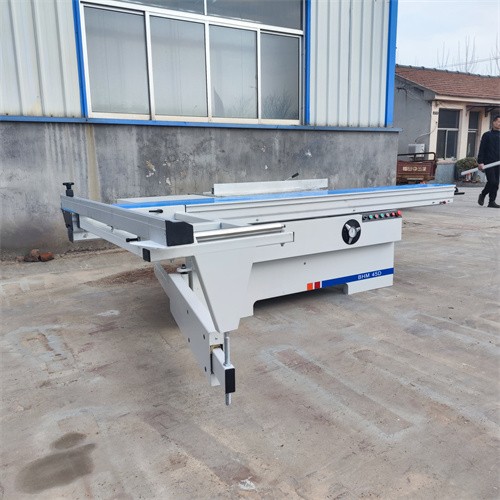

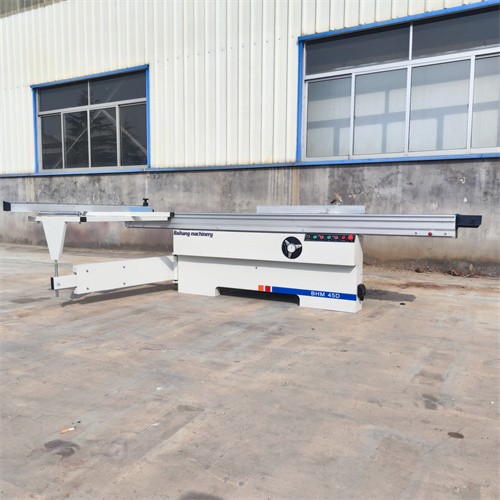

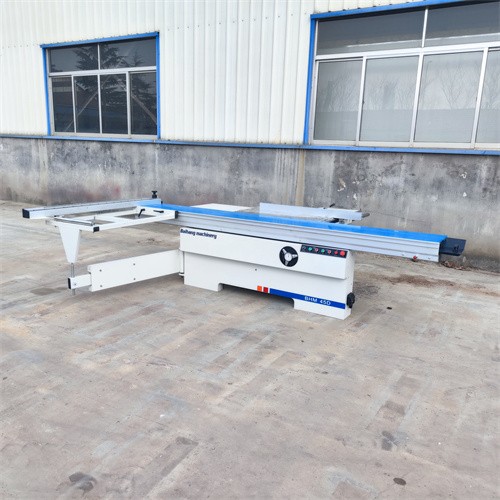

45 Degree Standard Configuration Manual Lifting 4kw Slide Table Saw

1

Sliding table size

2800*375mm

3000*375mm

3200*375mm

2

Maximum cutting plate length

2800mm/3000mm/3200mm

3

Maximum cutting board thickness

75mm

4

Saw blade angle

0-45度

5

Saw blade diameter

300mm

6

Vice saw blade diameter

120mm

7

Main saw blade speed

4500/6000rpm

8

Vice saw blade speed

6000/8000rpm

9

Spindle diameter

30mm

10

Counter shaft diameter

20mm

11

Main motor power

4---5.5kw

12

Power of auxiliary motor

0.75—1.1kw

13

Voltage

380v/50Hz  3Phase

14

Dimensions

2800*1100*1200mm

3000*1100*1200mm

3200*1100*1200mm
