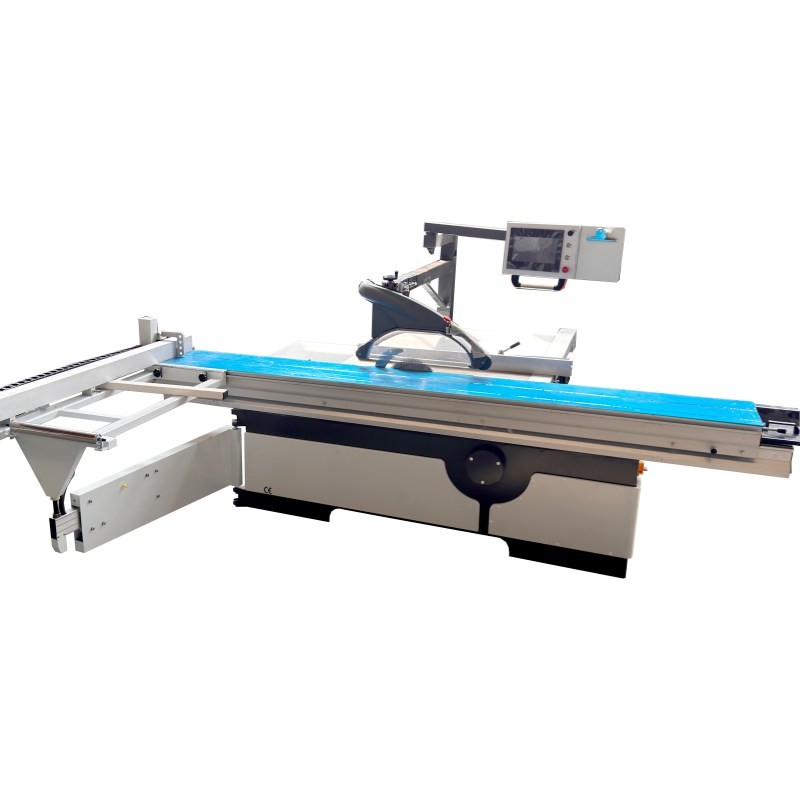

CNC Sliding Table Saw Machine with Precise Wood Cutting 5.5*1.1kw

  • Product Item : MS6132S
  • Category： Table saw
  • Name:Slide Table Saw
  • Length:3200mm
  • Slide Table Model:European slide table
  • Degree:45 Degree
  • INQUIRY   EMAIL

45 Degree Standard Configuration CNC Sliding Table Saw


Configuration

Parameter Specification
Main motor power 5.5 kW
Max. sawing length 3200 mm
Saw blade angle 0–45°
Scoring saw diameter 120 mm
Max. sawing width 1250 mm
Scoring saw speed 7000–8000 rpm
Saw blade diameter 300 mm (250–400 mm)
Secondary shaft diameter 20 mm
Max. sawing thickness 80 mm
Auxiliary motor power 1.1 kW
Saw arbor speed 4500 / 6000 rpm
Gross weight 950 kg
Main shaft diameter 30 mm
Overall dimensions 3350 × 3350 × 900 mm











Product Features:

This machine is suitable for processing a wide range of materials with hardness similar to wood, including MDF, particle board, engineered wood, ABS board, PVC board, acrylic sheet, and solid wood.

The guide rails adopt a chrome-plated round bar design, ensuring high positioning accuracy. The machine frame is made of high-strength extruded aluminum alloy, providing excellent rigidity and dimensional stability. The surface is treated with an oxidation finish, offering both an aesthetic appearance and enhanced wear resistance.
